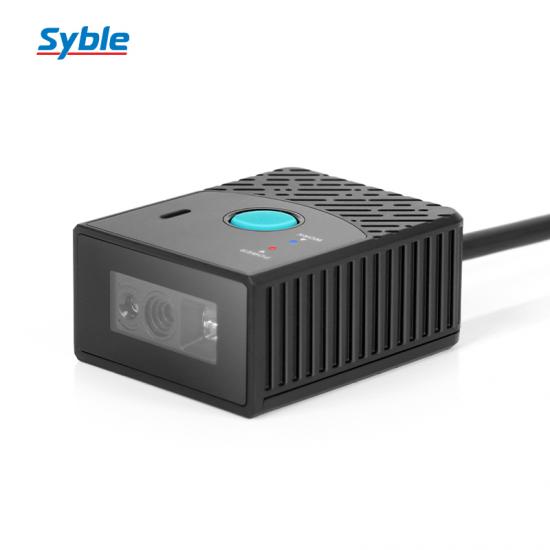

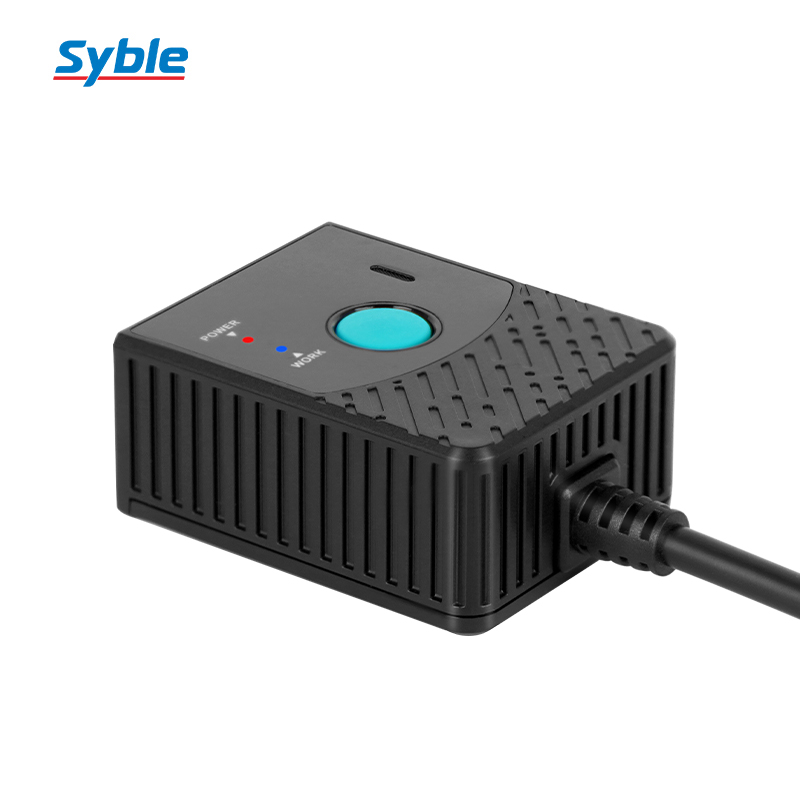

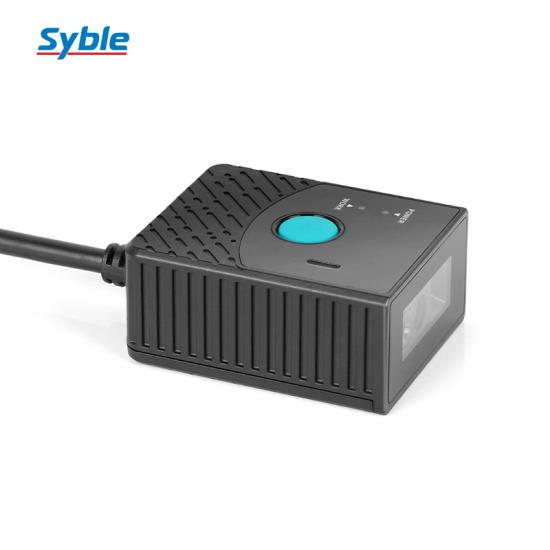

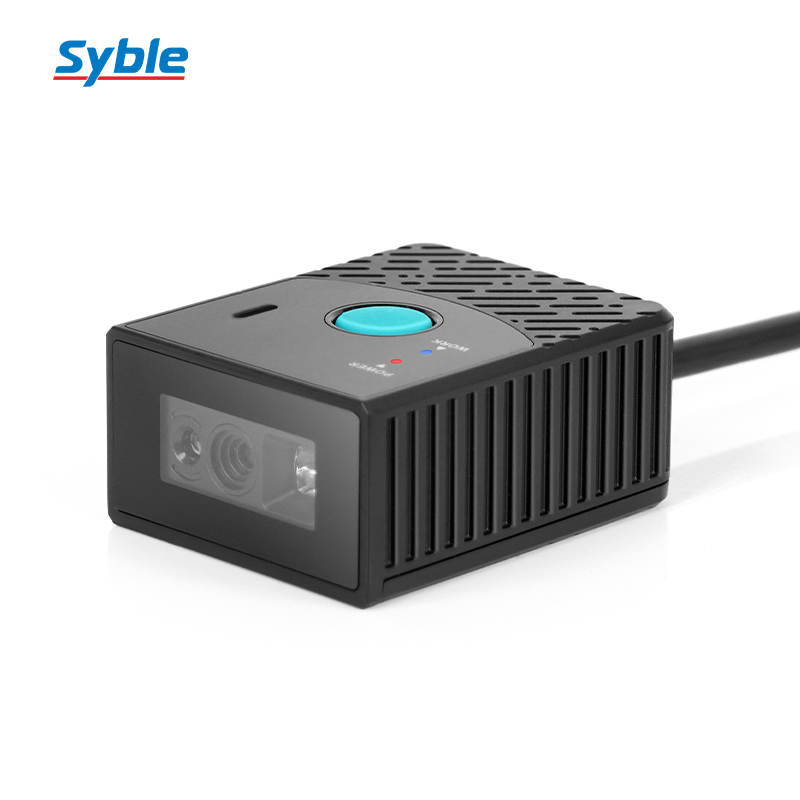

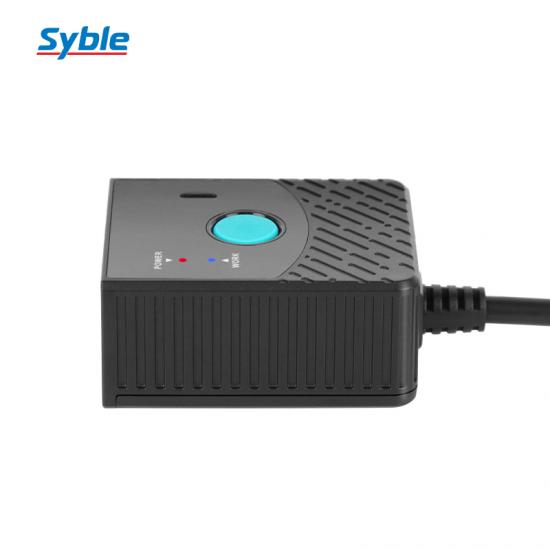

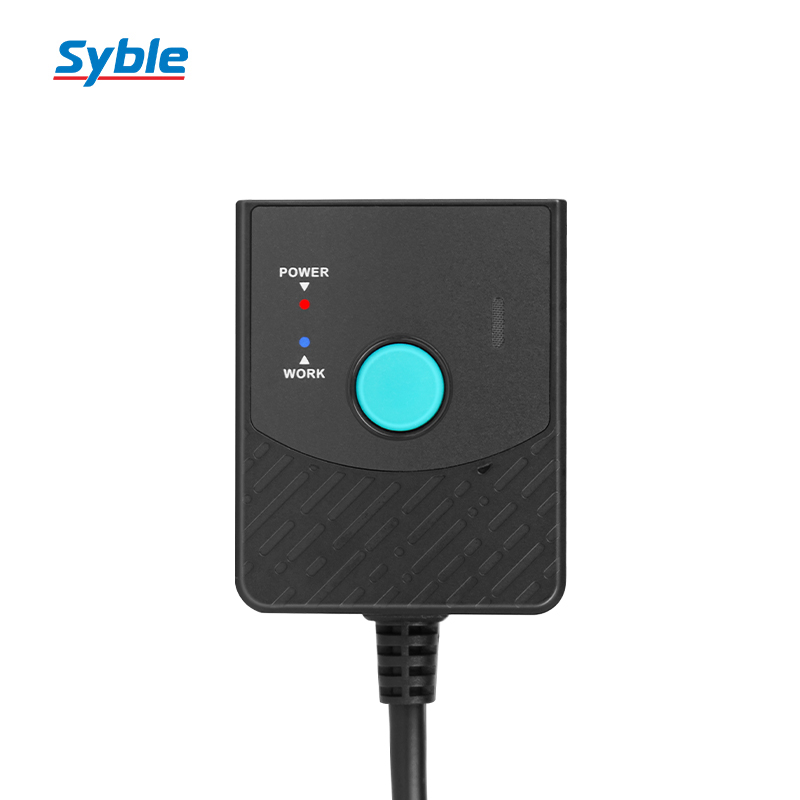

The Syble XB-7160 2D fixed barcode scanner can efficiently read 1D and 2D barcodes, and its wide depth of field adaptability and multi-scanning mode switching (manual/continuous/automatic) function enable it to work stably at different distances and scenarios with different operational needs, meeting diverse code reading needs. It is suitable for self-service cash registers, vending machines, food collection cabinets, express cabinets, payment machines, unmanned convenience stores, automatic ticket vending machines, garbage sorting and other scenarios.
Item NO.:
XB-7160Payment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackShipping Port:
Guangzhou/ShenzhenLead Time:
7-10daysFixed mount 2D Barcode Scanner
Product Features
Professional technology, mobile payment adaptation
Embedded structure to save more space
Scan fine bar code, fast and accurate
Auto-fill lighting
Plug and play, simple setup, fast use
Energy-saving circuit design, USB/RS232 low current standby

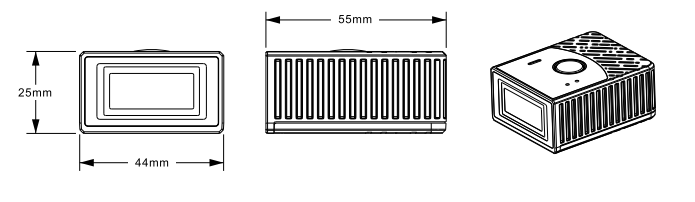

Product Size
Specification
|
Performance Parameters |
|
|
Sensor |
White lighting, green aiming light |
|
Supported Symbologies |
1D:Codabar、Code39、Code32Pharmaceutical (PARAF).、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight 2 of 5Industial、Straight 2 of 5 IATA，Matrix 2 of 5，Code 11Code128、GS1-128、UPC-A、UPC-E、EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBarLimited、GS1 DataBar Expanded、China Post(Hong Kong 2 of 5)、Korea Post. 2D: Codeblock A、Codeblock F、PDF417、Micro PDF417、GS1 Composite Codes、QR Code、Data Matrix、MaxiCode.Aztec、HANXIN. |
|
Scan Type |
Image CMOS |
|
Resolution |
640*480 |
|
Scan Mode |
Manual/Continuous/Automatic Induction Scanning |
|
Scan Angle |
Yaw ±65°,Rotation 360°,Pitch ±65° |
|
Precision |
≥5mil |
|
Bit Depth of field |
Code39(5mi): 7-16cm，Code39(13mil): 7-32cmQR code(15mil): 3-18cm，Code128(20mil): 6-35cm |
|
Error Rate |
Less than 1/5million |
|
Contrast |
≥20% |
|
Interface |
USB-HID，USB-COM,RS232 |
|
Electronic Parameters |
|
|
Working Voltage |
DC5V±5% |
|
Operating Current |
240MA |
|
Standby Current |
USB 25mA；RS2322uA |
|
Physical Parameters |
|
|
Dimensions |
55mm*44mm*25mm |
|
Material |
ABS+PC |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃~+50℃ |
|
Storage Temperature |
-40℃~+70℃ |
|
Relative Humidity |
5%~95%RH(Non-condensing) |
|
Ambient Lighting |
0~100000LUX |
|
Shock Resistance |
Withstands multiple times 1.5 meters drops to concrete |

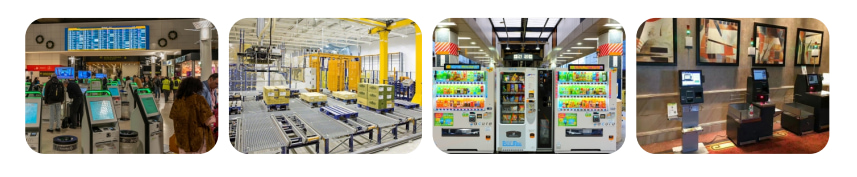

Application
It is suitable for supermarket self-service cash registers, vending machines, food collection cabinets, express cabinets, payment machines, unmanned convenience stores, automatic ticket dispensers, garbage sorting and other scenarios
