Item NO.:
XB-6221BTPayment:
EXW/FOBProduct Origin:
ChinaColor:
Black and GrayProduct weight:
263.6gShipping Port:
GuangzhouLead Time:
3-7 days

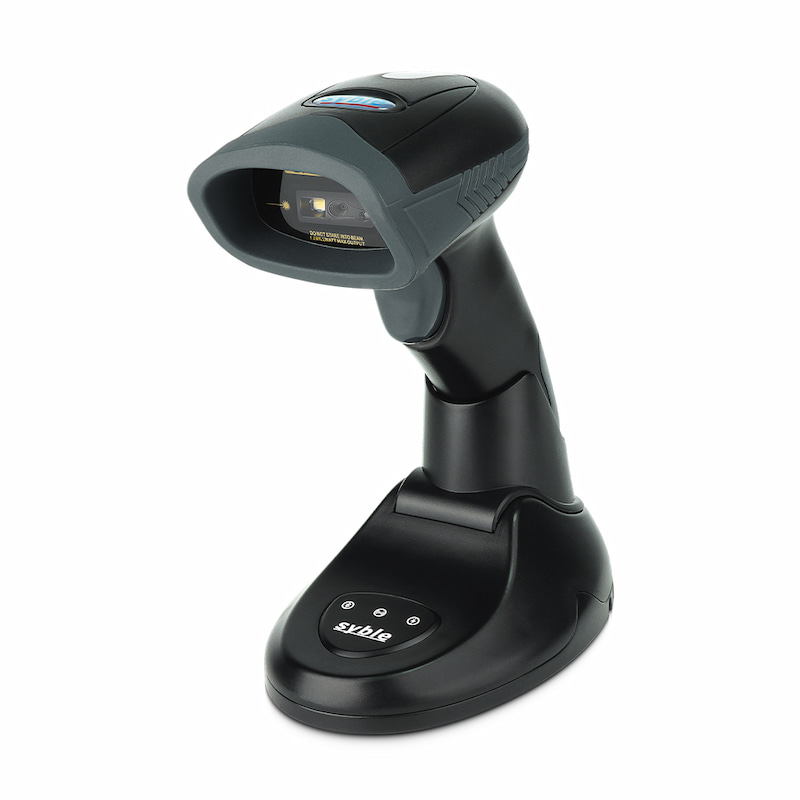

Syble XB-6221BT 2D Wireless Handheld Barcode Scanner supports 1D/2D barcodes and is compatible with retail/logistics-specific codes. Equipped with a high-efficiency CMOS sensor, it decodes quickly and accurately. Features dual-mode wireless connectivity and offline storage capabilities, with industrial-grade drop and splash resistance. Its lightweight body ensures comfortable grip. The 1400mAh battery supports 15 hours of continuous operation. Ideal for diverse mobile scanning scenarios including retail warehousing, logistics inventory management, and production line oversight, it enhances operational efficiency.
Product Features
Application
The Syble XB-6221BT 2D QR wireless barcode scanner is affordable and suitable for scanning scenarios in supermarkets, retail, electronic vouchers, industry, light industry, express logistics, and other fields.
Specifications
|
Model Number |
XB-6221BT |
| Performance Parameters | |
| Light Sources | White illumination LED, red aiming light |
| Supported Symbologies |
1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128, Code93,ITF-14, ITF-6, Interleaved 2of 5, Industrial 2 of 5, Matrix 2of 5,GS1 Databar(RSS), Code 39, Code 11, MSl-Plessey. |
| Scan Type | Image COMS |
| Scan Method |
Manual/Continuous/Automatic Scintillation
|
|
Resolution |
640*480 |
| Scan Angle | Yaw ±60°,Rotation 360°,Pitch ±60° |
| Precision |
≥4mil
|
| Depth of scan field |
EAN13 40mm-240mm(13mil); Code39 30mm-100mm(5mil) QR Code 30mm-180mm(15mil); Code 128 50mm-120mm(5mil) |
| Error Rate | Less than 1/5 million |
| Interface | Base: USB-HID, USB-COM; Bluetooth: HID, BLE mode |
| Operating Current | 170mA |
| Transmission Distance | 100M(Open yard) |
|
Pairing Mode
|
One to One: One Scanning Gun Pairs One Receiver,One scanner paired with a Bluetooth mobile device.
|
| Physical Parameters | |
| Dimensions | 69mm*79.7mm*187mm |
| Weight |
Scanner：151.6g Scanner base：112g |
| Material | ABS+PC |
| Cable Length | 1.5M |
| Environmental Parameters | |
| Operating Temperature | -20℃~50℃ |
| Storage Temperature | -40℃~70℃ |
| Relative Humidity | 5%~95%（Non-condensing） |
|
Drop/Shock Resistance
|
Withstands multiple times 1.5 meters drops to concrete
|
|
Electrical Parameters |
|
| Voltage | DC5V±5% |
| Lithium battery | 1400mA |
| Battery Working Times |
Scaner continuously scans for 1 second, with a working time of 15 hours or a scanning capacity of 54000 scans |
| Charging Time |
3-4h |
| Standby Current | 0mA |
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why is it so competitive?
With years of experience, Syble has a huge domestic and international market. Mass production directly reduces raw material costs. More importantly, mature technology is an important factor in cost savings.
Q3: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q4:What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. During the warranty period, if there is any quality issue with the product, we will provide free repair advice and, if necessary, offer free replacement parts or a new barcode scanner.
Q5:What Value-added services can be provided:
1.Provide all technical documents as required
2.Provide the necessary professional training online or offline
