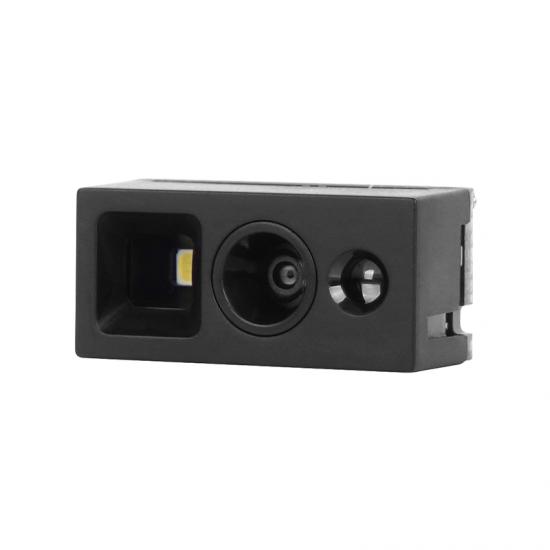

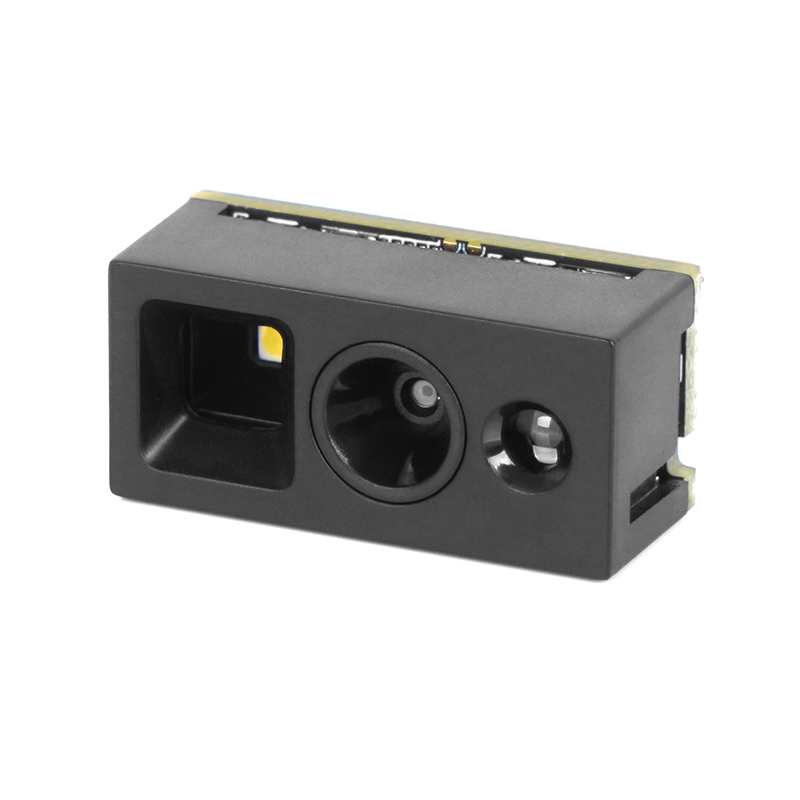

Syble XB-HS3060 2D Barcode Scanner Module is a compact and high-speed barcode scanning module that can easily handle all kinds of barcode recognition needs. With high performance, it is suitable for multiple embedded scenarios, such as self-service vending machines, access control scanning, automatic gate scanning, courier locker scanning and so on.
Item NO.:
XB-HS3060Payment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackShipping Port:
Guangzhou/ShenzhenLead Time:
7-10days2D Image Module
Product FeaturesCompact size, suitable for various embedded scenarios

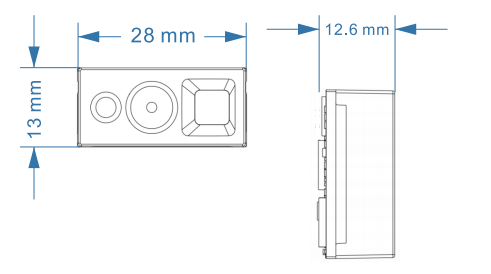

Mechanical Dimensions
|
Specification |
|
|
Performance Parameters |
|
|
Light |
Lighting:White LED; Focus: Red LED |
|
Supported symbologies |
1D: Codabar, Code 39, Code 32 Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5,Code 93.Straight 2 of 5 Industrial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, GS1- 128. UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13, MSI,GS1 DataBar Omnidirectional, GS1 DataBar Limited,GS1 DataBar Expanded, China Post (Hong Kong 2 of 5), Korea Post. |
|
Contrast |
≥20% |
|
Sensor |
1200*800 CMOS |
|
Scan Mode |
Manual/continuous/Automatic Scanning |
|
Precision |
≥5mil |
|
Depth of field |
Code39:60mm-350mm(15mil); |
|
Field of view |
Horizontal 44°,Vertical 33° |
|
Interfaces |
TTL-232,USB(HID-KBW, virtual serial port) |
|
Physical Parameters |
|
|
Dimensions |
28(W)x12.6(D)x13(H)mm |
|
Environmental Parameters |
|
|
Operating Temperature |
-20 °C ~ 50 °C |
|
Storage Temperature |
-40℃~70℃ |
|
Relative Humidity |
5% ~95% RH(non-condensing/non-freezing) |
|
Ambient Lighting |
0~100000LUX |
|
Electrical Parameters |
|
|
Voltage |
DC3.3V |
|
Current |
Working current 400mA; Standby current 180mA |

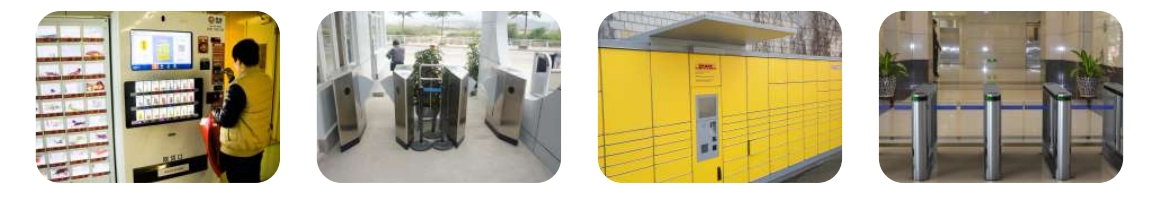

Application
