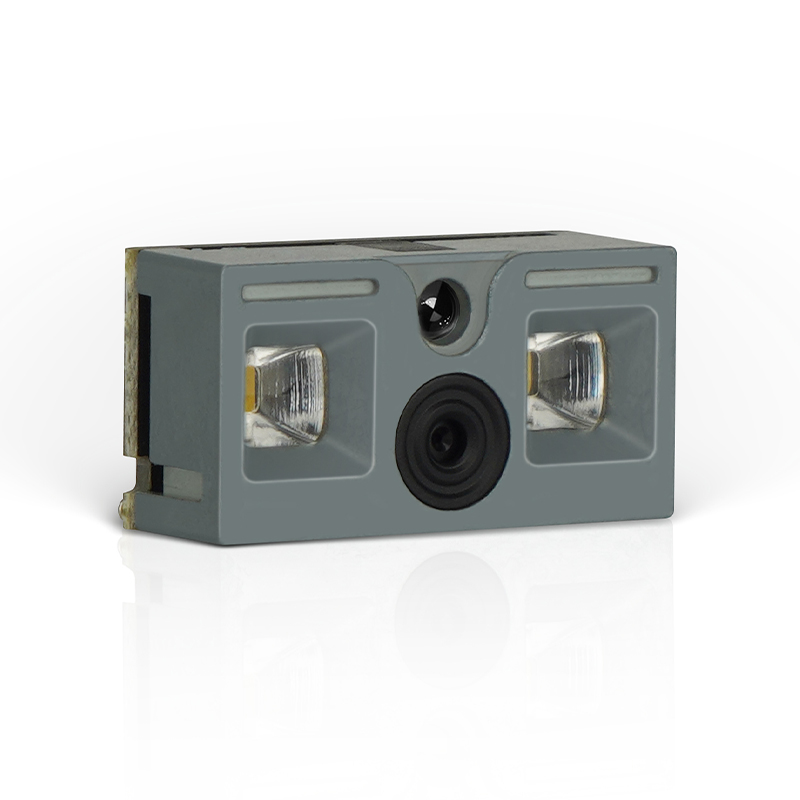

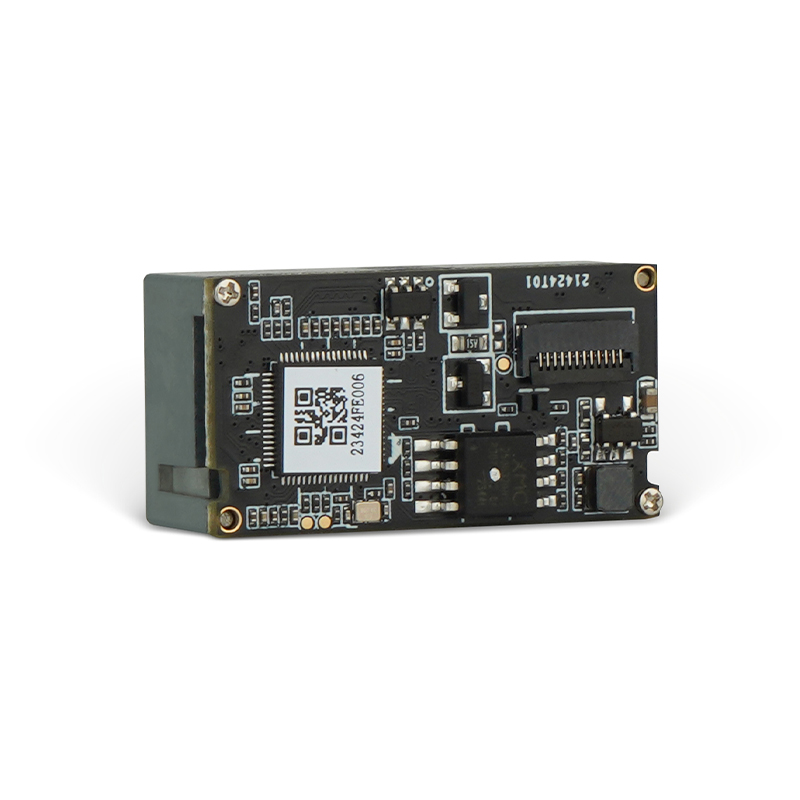

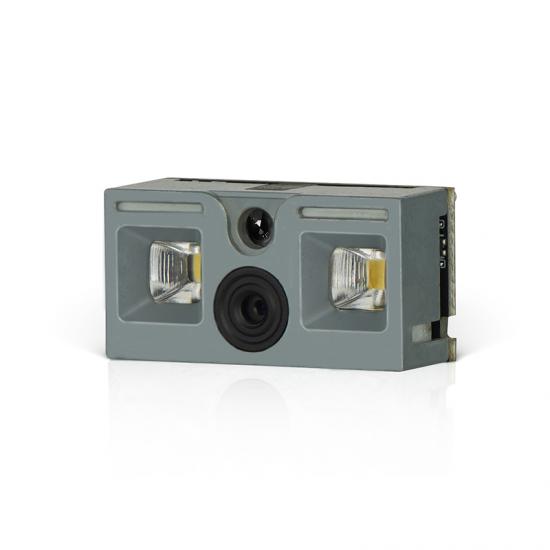

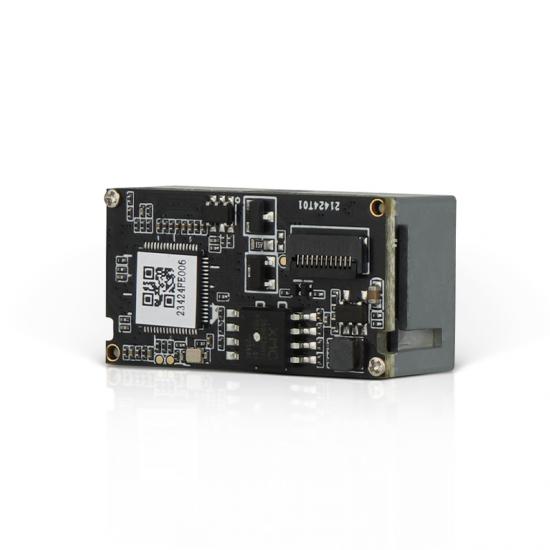

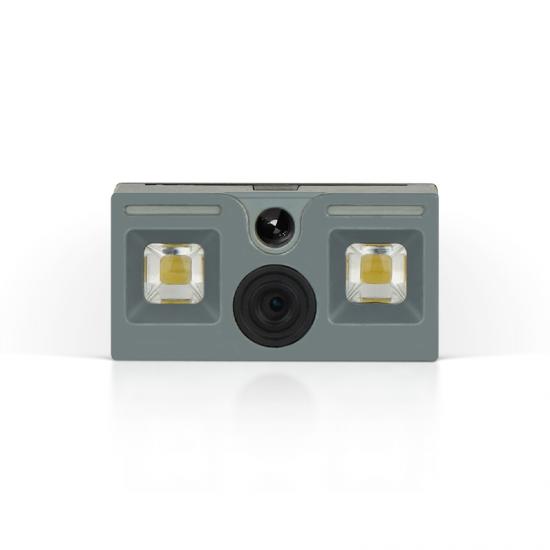

2D Image Module 120FPS Barcode Scanner Engine Module

Product Features

• High-quality metal shell and dual-light design
• Ultra-long code reading depth offield
• Global exposure module, moving tolerance up to 2 m/s
• Code scanning speed up to 120FPS
• Small size,suitable forvarious embedded scenarios
• Support USB,USB-COM,TTL-232 multiple interfaces
• Support secondary development, provide complete SDK and comprehensive technical support

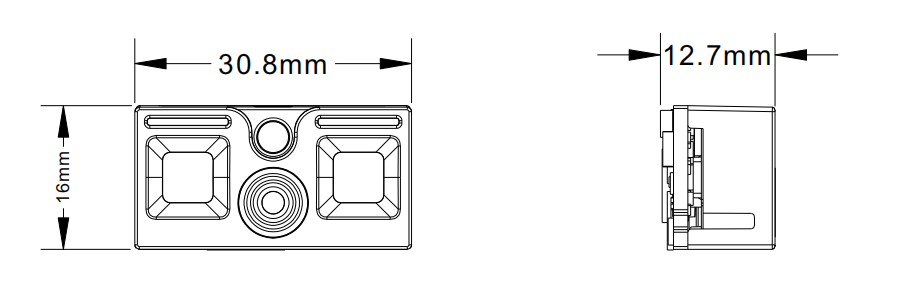

  Mechanical Dimensions



  Specification
  Performance Parameters
  Illumination	White LED
  Aiming	Green LED
  Supported symbologies	1D: Codabar, Code39, Code32, Pharmaceutical (PARAF), Interleaved 2 of , NEC 2 of 5, Code 93, Straight 2 of 5Industial,Straight 2 of 5 IATA, Matrix 2 of 5, Code 11、Code128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded,China Post(Hong Kong 2 of 5), Korea Post 2D: PDF417, Micro PDF417, GS1 Composite Codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN.
  Print Contrast	≥20%
  Sensor	640*480 CMOS
  Scan Speed	120FPS
  Recognition Accuracy	≥4mil
  Depth of field	EAN 13 55mm-400mm(13mil) Code39 50mm-220mm(5mil) QR Code 75mm-260mm(15mil) Code 128 65mm-190mm(5mil)
  Identification Angle	Skew +65°, Picth +360°, and Roll +65°
  Field of View	Horizontal 34°,vertical 28°
  Interfaces	TTL-232,USB (HID-KBW, virtual serial port)
  Physical Parameters
  Dimensions	30.8(W)x12.7(D)x16(H)mm
  Environmental Parameters
  Operating Temperature	-20 °C ~ 50 °C
  Storage Temperature	-40℃~70℃
  Relative Humidity	5% ~95% RH(non-condensing/non-freezing)
  Ambient Lighting	0~100000LUX
  Electrical Parameters
  Voltage	DC 3.3V
  Working current	≥300mA
  Standby current	≥35mA
