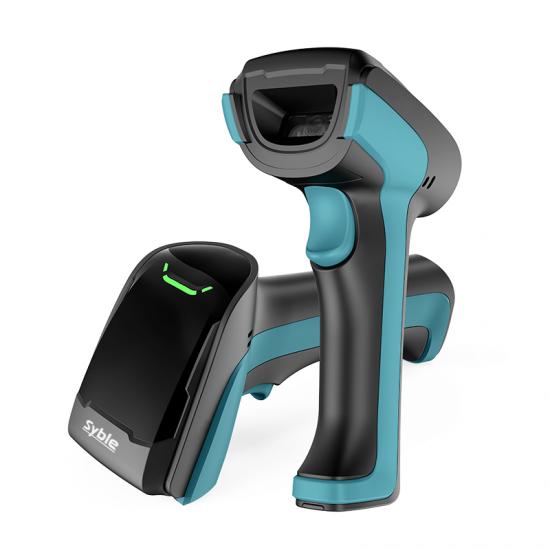

2D Industrial wired barcode scanner, with ergonomic design and rich decoding ability, quickly and accurately scan of 1D 2D PDF417 DM QR barcodes.
Item NO.:
XB-D50Payment:
EXW/FOBProduct Origin:
GuangzhouColor:
Black and BlueShipping Port:
Guangzhou/ShenzhenLead Time:
5-7daysXB-D50 is Syble 2D Industrial wired handheld barcode scanner. It has strong scanning ability and super decoding ability which is very suitable for retail store, supermarket, warehouse etc and supports for Windows Android Linux.
Product Features
• New decoding chip for interpreting various 1D and 2D barcodes
• One million pixels, with a scanning speed of up to 120FPS
• Support Chinese direct transmission of QR code
• Plug and play, easy to set up and quickly match
• Wire life more durable
• IP 54 grade dustproof and and waterproof
Specification
Performance Parameters
Light Sources
White lighting,green aiming linght
Supported Symbologies
1D: Coda bar, Code39, Code32Pharmaceutical(PARAF), Interleaved 2 of 5,NEC 2 of 5, Code 93, Straight 2 of 5 industial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Codel28, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI,GS1 DataBar Omnidirectional, GS1 DataBarLimited, GS1 DataBar Expanded,China Post(Hong Kong 2 of 5), Korea Post.
2D: Codeblock A, Codeblock F, PDF417, Micro PDF417, GS1 Composite Codes,Q.R Code, Data Matrix, MaxiCode, Aztec, HANXIN.
Scanning Principle
Image CMOS
Resolution
1280*800
Print Contrast
20% minimum reflective difference
Trigger Mode
Manual scan/Continuous scan/Automatic Induction scan
Scan Angle
Yaw±65°, Rotation 360°, Pitch±65°
Depth of scan field
EAN 13 (13mil):55-400mm, Code39(5mil): 50-220mm
QR code (15mil):75-260mm, Code128(20mil): 65-190mm
Error Rate
1/5million
Interface
USB-HID,USB-COM,RS232
Physical Parameters
Dimensions
69mm*83.6mm*173.6mm
Material
ABS+TPU
Cable Length
1.5M
Environmental Parameters
Operating Temperature
-20℃ ~50℃
Storage Temperature
-40℃~70℃
Relative Humidity
5%~95% RH(Non-condensing)
Ambient lighting
0~100000LUX
Shock Resistance:
Withstands multiple times 1.5 meters drops to concrete
Electronic Parameters
Working Voltage
DC5V±5%
Operating Current
255mA
Standby Current
124mA

FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why is it so competitive?
With years of experience, Syble has a huge domestic and international market. Mass production directly reduces raw material costs. More importantly, mature technology is an important factor in cost savings.
Q3: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q4:Is your production capacity and delivery schedule stable?
We have our own injection molding department, which offers greater control over the structure, materials and production schedule. This enables us to better ensure consistent quality and stable delivery times.
Q5:What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. During the warranty period, if there is any quality issue with the product, we will provide free repair advice and, if necessary, offer free replacement parts or a new barcode scanner.
Q6:What Value-added services can be provided:
1.Provide all technical documents as required
2.Provide the necessary professional training online or offline
