Item NO.:
XB-76M8Payment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackShipping Port:
GuangzhouLead Time:

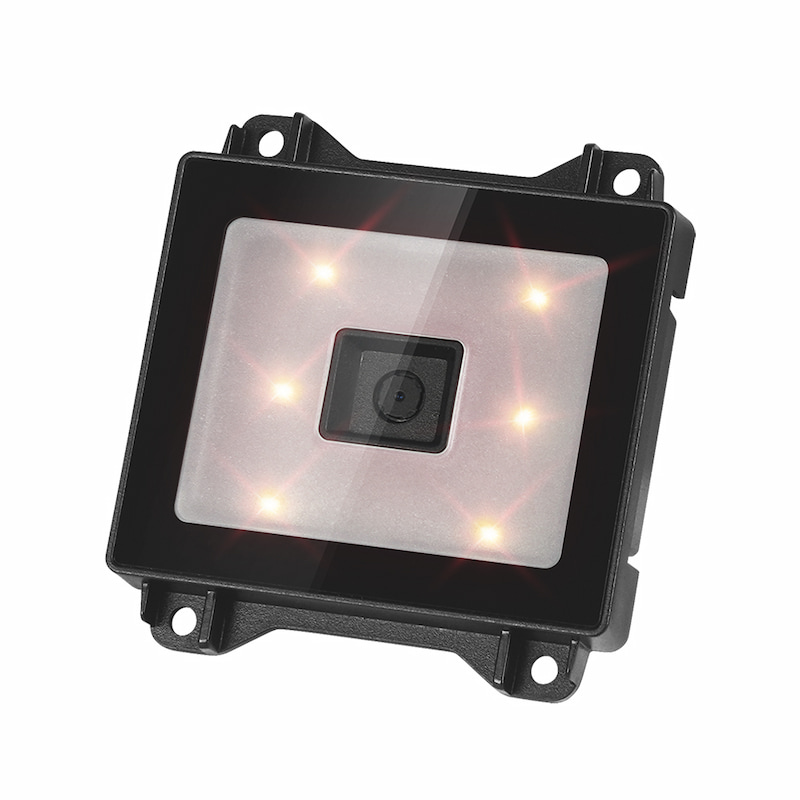

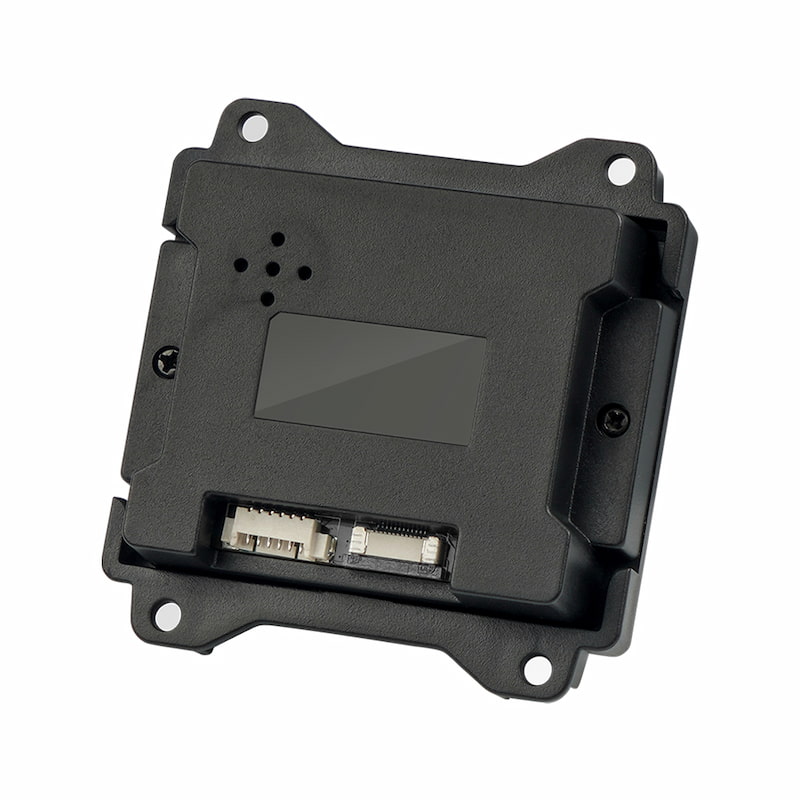

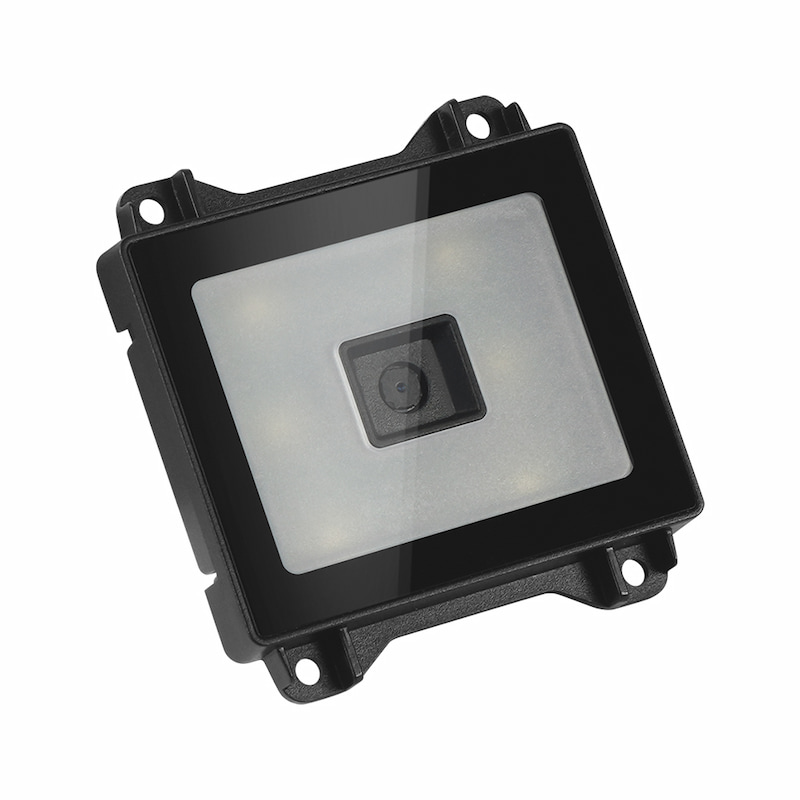

5-7daysXB-76M8: The 2D embedded barcode scanner has the Ultra Compact Size,multiple Interfaces and high identification speeding. It can be used in many applications of supermarket,kiosk, parking lot, gate and etc.
Product Features
Performance Parameters
Sensor
White LED
Supported Symbologies
1D: Codabar, Code 39, Code 32 Pharmaceutica l(PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5 Industial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, China Post(Hong Kong 2 of 5), Korea Post 2D: Codeblock A, Codeblock F, PDF417, Micro PDF417, GS1 Composite Codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN
Image (Pixels)
640*480
Field of View
93°(H) x 55°(V)
Scan Angle
Yaw ±60°, Rotation ±360°, Pitch ±65°
Print Contrast
20%
Bit Depth of field
Code39(13mil): 2-15cm; QR(15mil): 3.5-9cm;
ENA13(13mil): 2-15cm; Alipay(QR 3*3cm): 3-23cm.
Motion tolerance
>40cm/s
Interfaces
USB, RS232, TTL232
Physical Parameters
Dimensions
60.8mm*20.8mm*65mm
Material
ABS+PC
Environmental Parameters
Operating Temperature
-20℃~60℃
Storage Temperature
-30℃~70℃
Ambient Light Immunity
0-100,000 Lux
Relative Humidity
5% ~95% RH (non-condensing/non-freezing)
Shock Resistance
Withstands multiple times 1.5 meters drops to concrete
Electrical Parameters
Voltage
DC5V±5%
Current
Starting Current: 260mA;
Operating Currents
Standby current 170mA; Working current 310mA.

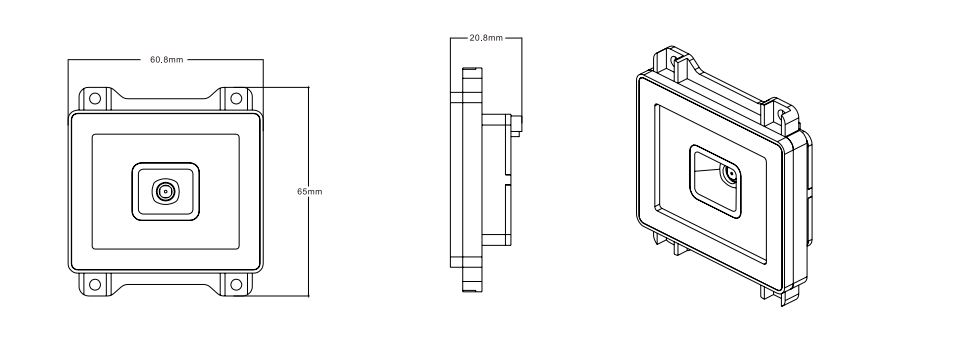

Product Size

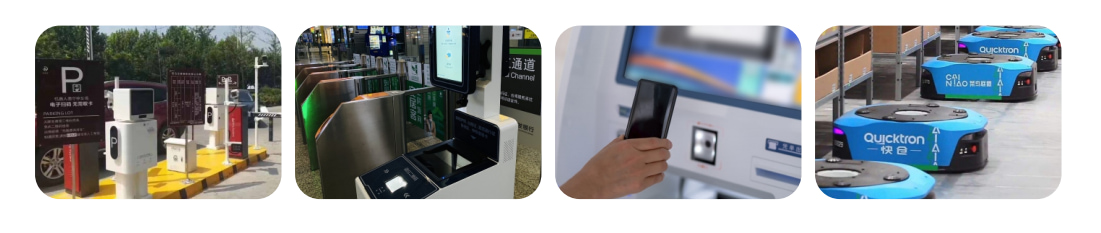

Application
The XB-76M8 2D embedded barcode scanner is suitable for scenarios such as supermarket self-checkout machines, vending machines, automatic retail, express lockers, payment machines, unmanned convenience stores, turnstiles, collection and payment, and warehouse classification
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why is it so competitive?
With years of experience, Syble has a huge domestic and international market. Mass production directly reduces raw material costs. More importantly, mature technology is an important factor in cost savings.
Q3: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q4:What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. During the warranty period, if there is any quality issue with the product, we will provide free repair advice and, if necessary, offer free replacement parts or a new barcode scanner.
Q5:What Value-added services can be provided:
1.Provide all technical documents as required
2.Provide the necessary professional training online or offline
