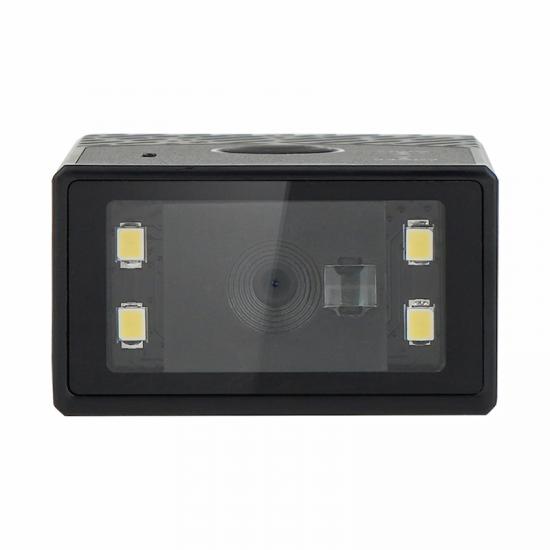

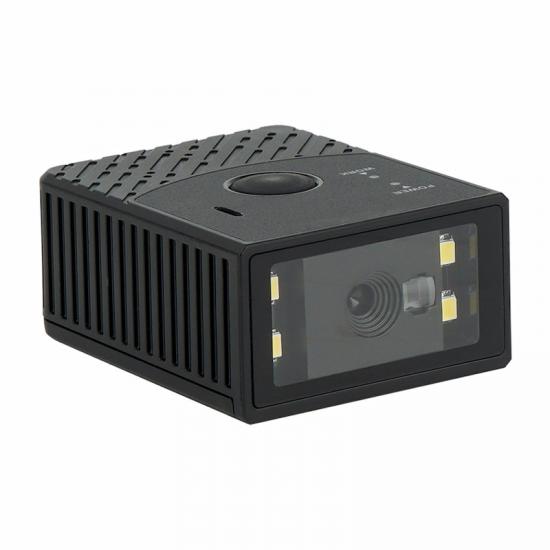

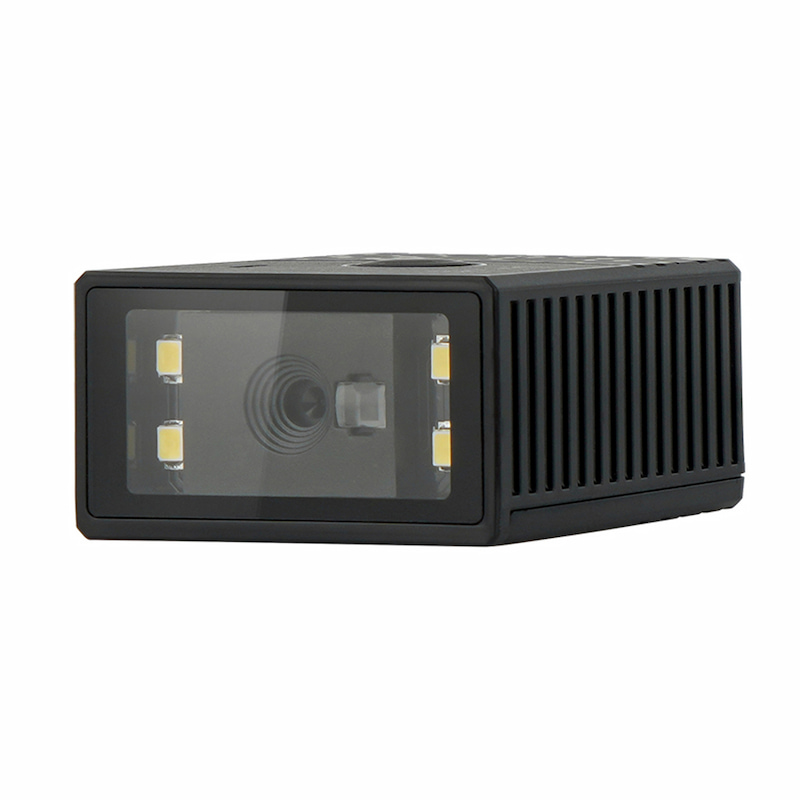

This Syble XB-71682D fixed barcode scanner is equipped with a high-performance global exposure scanning module. Its scanning speed can reach up to 120FPS, and the motion tolerance is 3 meters per second. It supports multiple interfaces such as USB-HID, USB-COM, and RS232, and is capable of scanning various 1D/2D codes. It can be applied to scenarios such as self-checkout machines, vending machines, courier cabinets, and unmanned convenience stores.
Item NO.:
XB-7168Payment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackShipping Port:
Guangzhou/ShenzhenLead Time:
5-7days2D Fixed Mount Barcode Scanner
Product Features
Scan speed up to 120FPS, movement tolerance up to 3 meters/s
Supports multiple interfaces such as USB, USB-COM, RS-232, etc
Supports most 1D and 2D coding systems, capable ofmeeting the vast majority of application scenarios

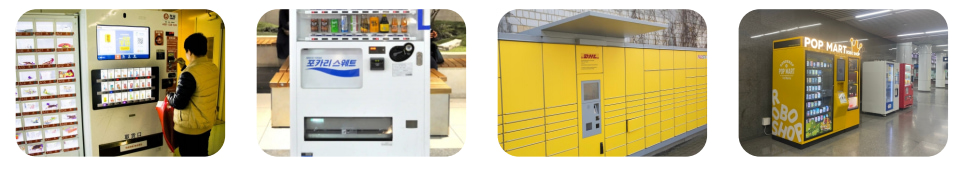

Application
XB-7168 2D Embedded Scanner is suitable for self-service vending machines, self-service pickup machines,self-service cash registersand other scenarios
|
Performance Parameters |
|
|
Sensor |
White light illumination LED, red light positioning |
|
Supported Symbologies |
1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, etcCodaBar,Code 128, Code93, ITF-14, ITF-6, Interleaved 2 of 5, |
|
Scan Type |
Image CMOS |
|
Sensor pixels |
640 pixels (H)x 480 pixels (V) |
|
Scan Mode |
Manual/Continuous/Automatic Induction Scanning |
|
Scan Angle |
Yaw ±55°,Rotation 360°,Pitch ±55° |
|
Precision |
≥4mil |
|
Bit Depth of field |
EAN-13(13mil) 45-255mm; |
|
Error Rate |
Less than 1/5million |
|
Contrast |
≥20% |
|
Interface |
USB-HID，USB-COM,RS232 |
|
Electronic Parameters |
|
|
Working Voltage |
DC5V±5% |
|
Operating Current |
300mA |
|
Standby Current |
130mA； |
|
Physical Parameters |
|
|

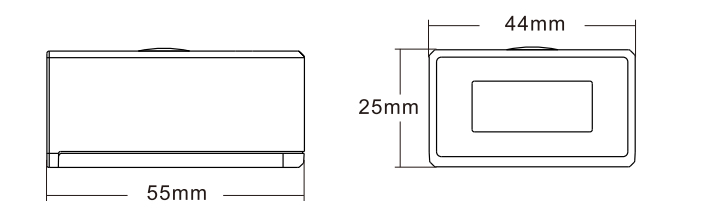

Dimensions |
44(L)x55(W)x25(H)mm |
|
Material |
ABS+PC |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃~+50℃ |
|
Storage Temperature |
-40℃~+70℃ |
|
Relative Humidity |
5%~95%RH(Non-condensing) |
|
Ambient Lighting |
0~100000LUX |
|
Shock Resistance |
Withstands multiple times 1.5 meters drops to concrete |
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacturer and are capable of manufacturing the products based on customer requirements. All the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why is it so competitive?
With years of experience, Syble has a huge domestic and international market. Mass production directly reduces raw material costs. More importantly, mature technology is an important factor in cost savings.
Q3: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.
Q4: How to control the performance stable?
Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q5. What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. During the warranty period, if there is any quality issue with the product, we will provide free repair advice and, if necessary, offer free replacement parts or a new barcode scanner.
