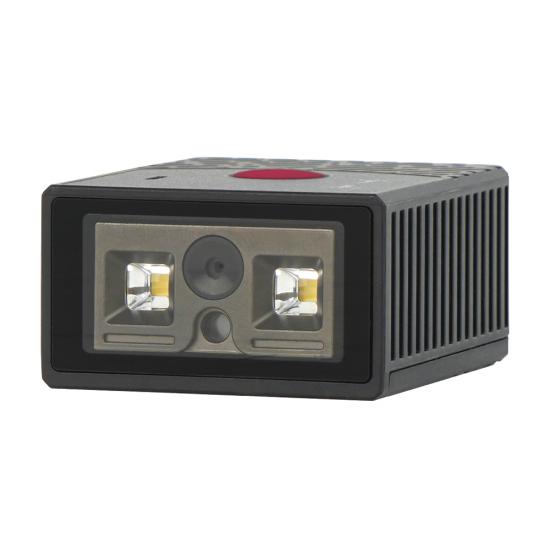

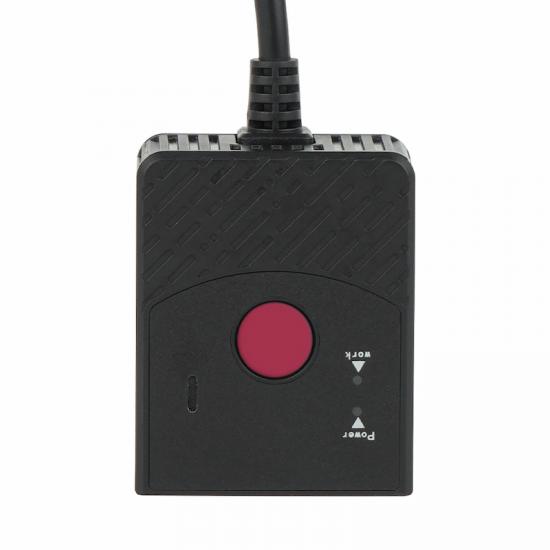

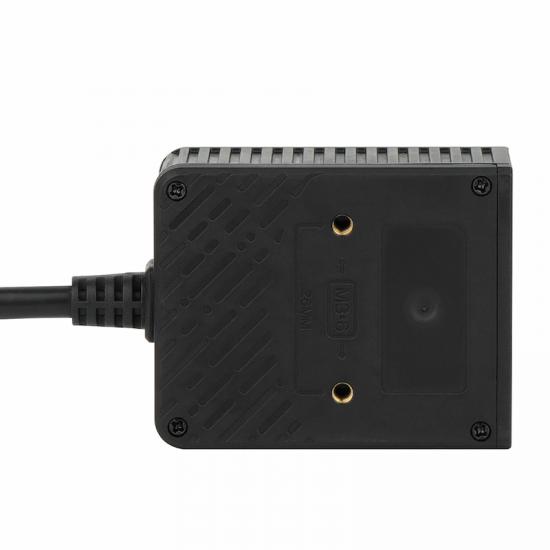

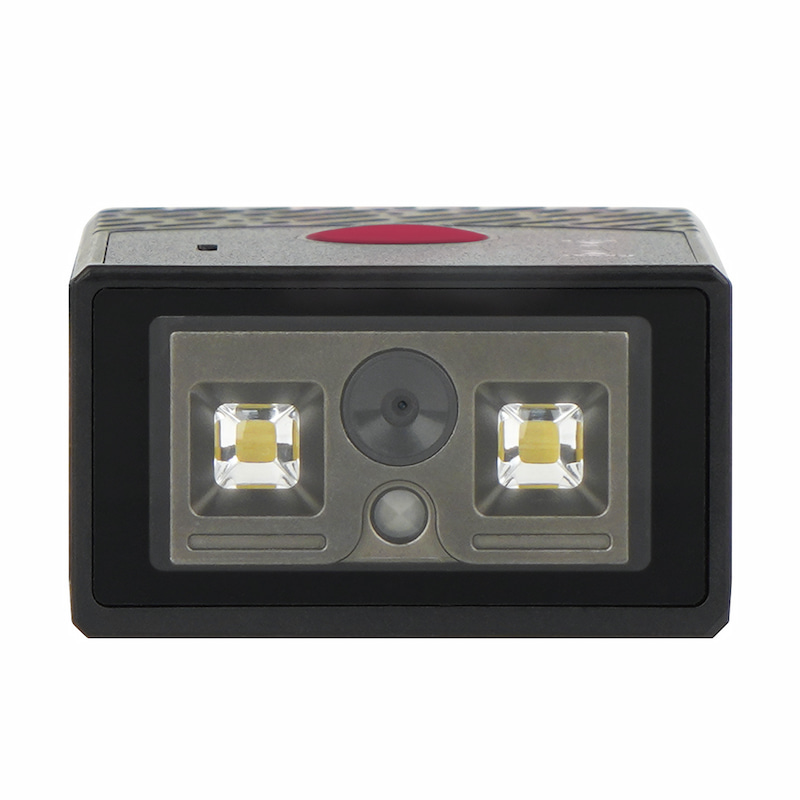

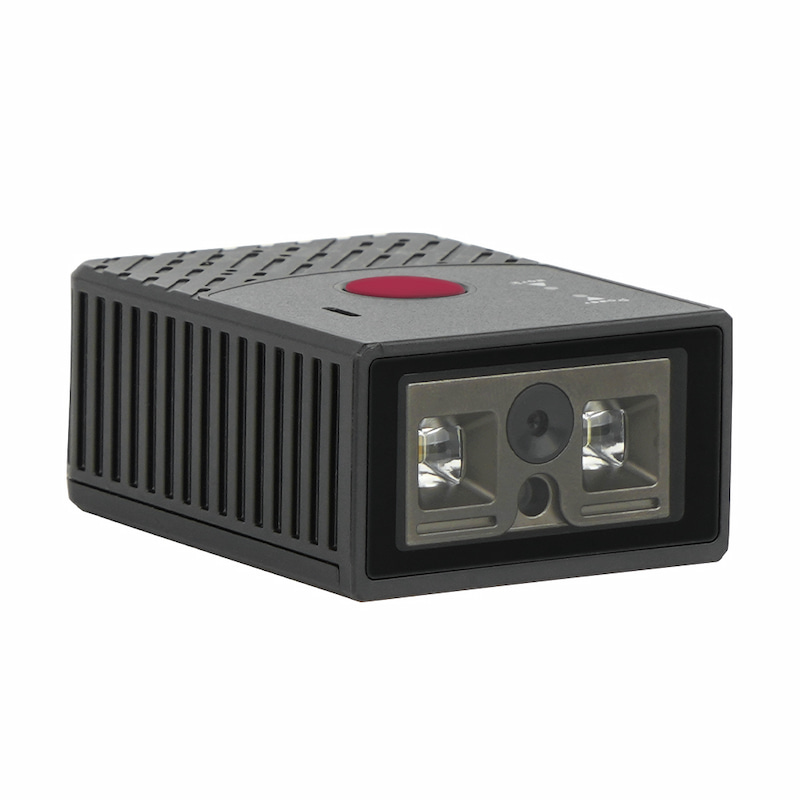

The Syble XB-7166 2D fixed barcode reader has 1.3 million pixels and can efficiently read 1D and 2D barcodes. Its cross laser positioning scanning and multi scan mode switching (manual/continuous/automatic) function enable it to scan more accurately in different scenarios, meeting diverse operational and barcode reading needs. Suitable for self-service cash registers, vending machines, food lockers, express delivery lockers, payment terminals, unmanned convenience stores, automatic ticket vending machines, and other scenarios.
Item NO.:
XB-7166Payment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackShipping Port:
Guangzhou/ShenzhenLead Time:
5-7days2D Embedded Barcode Scanner
Product Features
1.3 million pixels, ultra fast scanning
Embedded structure to save more space
Laser cross positioning assisted scanning code
Fine barcode capture, millimeter level precision
Plug and play, quickly integrated into retail POS, logistics sorting machines and other systems
Compact form factor,easy to embed self assistance terminals, intelligent shelves and other equipment

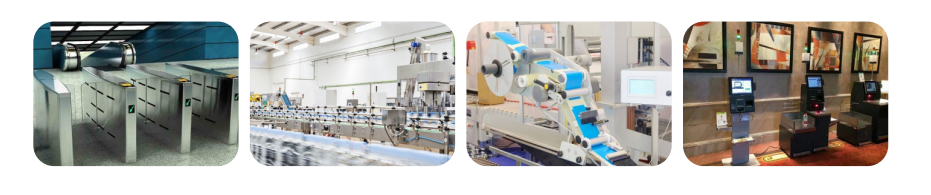

Application
XB-7166 2D Embedded Scanner is suitable for scenarios such as supermarket self-checkout counters, vending machines, meal pickup lockers, parcel lockers, payment kiosks, unmanned convenience stores, automated ticket dispensers, and logistics sorting system.
|
Performance Parameters |
|
|
Sensor |
White light illumination LED, cross laser positioning |
|
Supported Symbologies |
1D:Codabar、Code39、Code32Pharmaceutical (PARAF).、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight 2 of 5Industial、Straight 2 of 5 IATA，Matrix 2 of 5，Code 11、Code128、GS1-128、UPC-A、UPC-E、EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBarLimited、GS1 DataBar Expanded、China Post(Hong Kong 2 of 5)、Korea Post. 2D: Codeblock A、Codeblock F、PDF417、Micro PDF417、GS1 Composite Codes、QR Code、Data Matrix、MaxiCode.Aztec、HANXIN. |
|
Scan Type |
Image CMOS |
|
Resolution |
1280*1024 |
|
Scan Mode |
Manual/Continuous/Automatic Induction Scanning |
|
Scan Angle |
Yaw ±65°,Rotation 360°,Pitch ±65° |
|
Precision |
≥4mil |
|
Bit Depth of field |
EAN 13 55mm-400mm(13mil); Code39 50mm-220mm(5mil); |
|
Error Rate |
Less than 1/5million |
|
Contrast |
≥20% |
|
Interface |
USB-HID，USB-COM,RS232 |
|
Electronic Parameters |
|
|
Working Voltage |
DC5V±5% |
|
Operating Current |
240mA |
|
Standby Current |
USB 25mA；RS232 2uA |
|
Physical Parameters |
|
|
Dimensions |
55mm*44mm*25mm |
|
Material |
ABS+PC |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃~+50℃ |
|
Storage Temperature |
-40℃~+70℃ |
|
Relative Humidity |
5%~95%RH(Non-condensing) |
|
Ambient Lighting |
0~100000LUX |
|
Shock Resistance |
Withstands multiple times 1.5 meters drops to concrete |
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacturer and are capable of manufacturing the products based on customer requirements. All the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why is it so competitive?
With years of experience, Syble has a huge domestic and international market. Mass production directly reduces raw material costs. More importantly, mature technology is an important factor in cost savings.
Q3: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.
Q4: How to control the performance stable?
Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q5. What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. During the warranty period, if there is any quality issue with the product, we will provide free repair advice and, if necessary, offer free replacement parts or a new barcode scanner.
