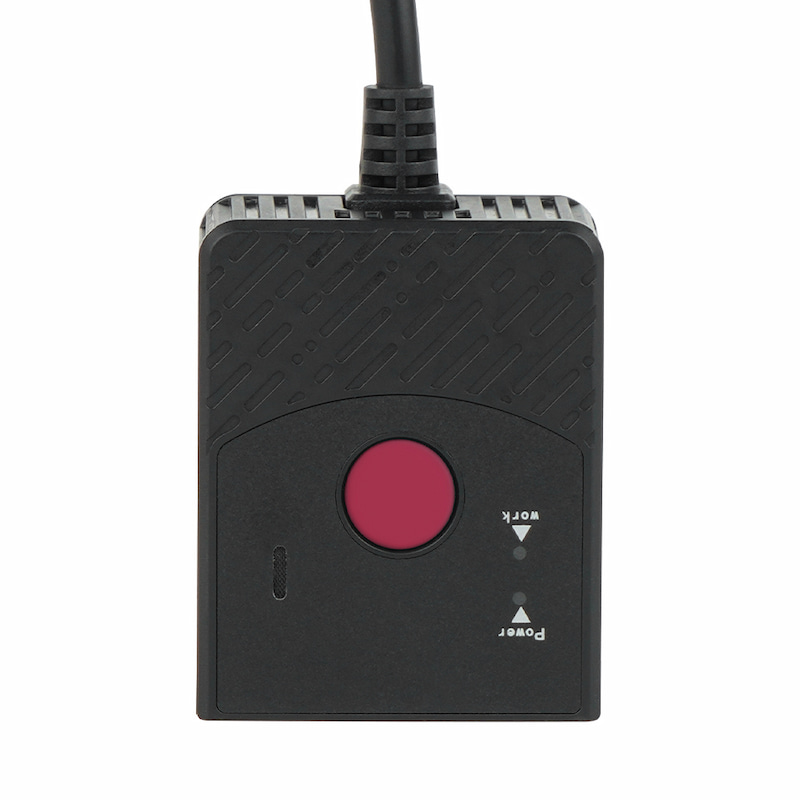

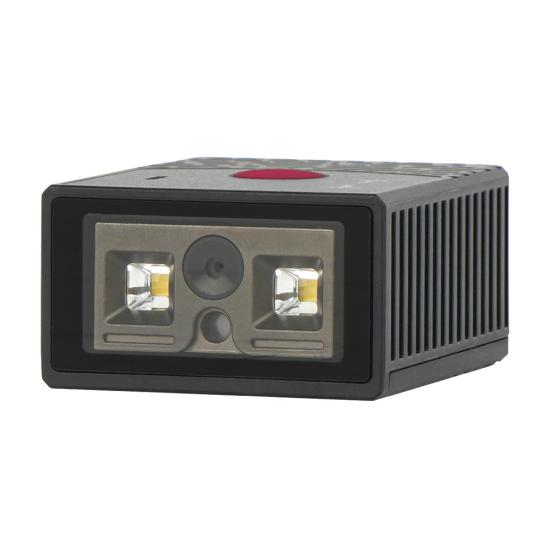

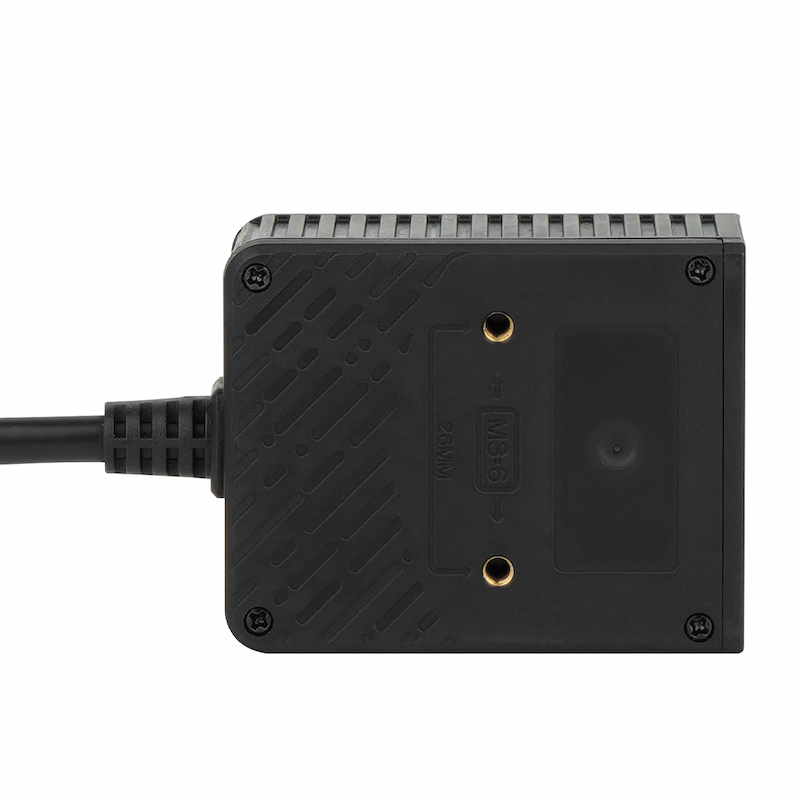

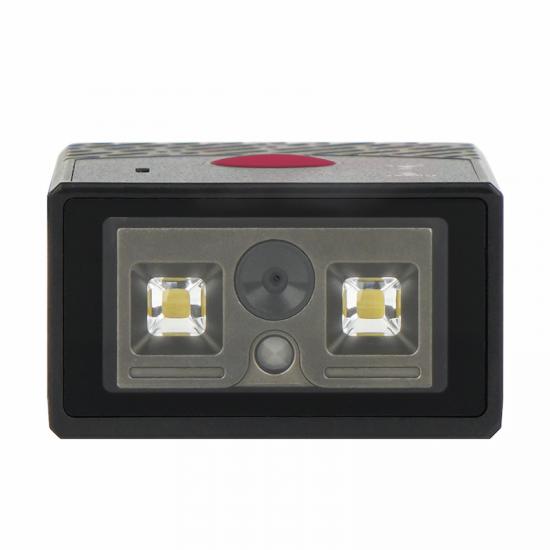

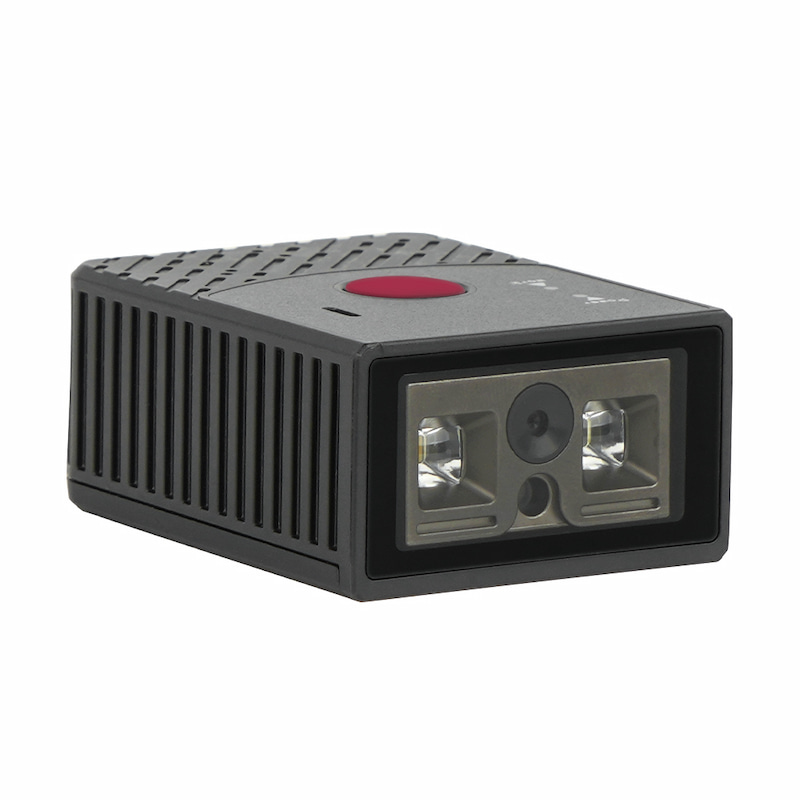

This Syble XB-7166 is a 2D embedded barcode scanner. It is equipped with a 1.3 million pixel configuration and laser cross positioning assistance for barcode scanning, enabling it to accurately identify various 1D&2D barcodes. It is plug-and-play and can quickly integrate into retail POS, logistics picking machines and other systems. With a compact design, it can be easily embedded in self-service terminals, intelligent shelves and other devices.
Item NO.:
XB-7166Payment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackShipping Port:
Guangzhou/ShenzhenLead Time:
5-7days2D Embedded Barcode Scanner
Product Features
1.3 Million pixels, ultra fast scanning
Laser cross positioning assisted scanning code
Plug and play, simple setup, fast use
Application

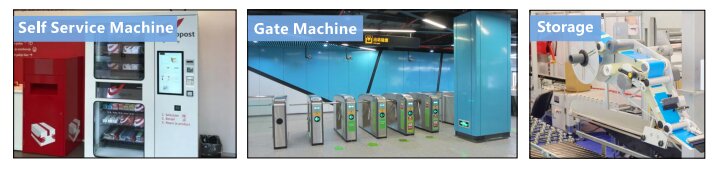

XB-7166 2D Embedded Barcode Reader is suitable for use in self-checkout machines in supermarkets, vending machines, meal pick-up cabinets, express delivery cabinets, payment machines, unmanned convenience stores, automatic ticket vending machines, and garbage classification scenarios, etc.
|
Performance Parameters |
|
|
Sensor |
White light illumination LED, cross laser positioning |
|
Supported Symbologies |
1D: Codabar, Code39, Code32Pharmaceutical (PARAF), Interleaved 2 of 5,NEC 2 of 5, Code 93, Straight 2 of 5Industial, Straight 2 of 5 IATA,Matrix 2 of 5, Code 11, Code128, GS1-128, UPC-A, UPC-E, EAN/JAN-8,MSI, GS1 DataBar Omnidirectional, GS1 DataBarLimited, EAN/JAN-13,GS1 DataBar Expanded, China Post(Hong Kong 2 of 5), Korea Post. |
|
Scan Type |
Image CMOS |
|
Sensor pixels |
1280*1024 |
|
Scan Mode |
Manual/Continuous/Automatic Induction Scanning |
|
Scan Angle |
Yaw ±65°,Rotation 360°,Pitch ±65° |
|
Precision |
≥4mil |
|
Bit Depth of field |
EAN 13 55mm-400mm(13mil); Code39 50mm-220mm(5mil);QR Code 75mm-260mm(15mil); Code 128 65mm-190mm(5mil). |
|
Error Rate |
Less than 1/5million |
|
Contrast |
≥20% |
|
Interface |
USB-HID，USB-COM,RS232 |
|
Electronic Parameters |
|
|
Working Voltage |
DC5V±5% |
|
Operating Current |
240mA |
|
Standby Current |
USB 25mA; RS232 2uA |
|
Physical Parameters |
|
|
Dimensions |
55mm*44mm*25mm |
|
Material |
ABS+PC |
|
Environmental Parameters |
|
|
Operating Temperature |
-20℃~+50℃ |
|
Storage Temperature |
-40℃~+70℃ |
|
Relative Humidity |
5%~95%RH(Non-condensing) |
|
Ambient Lighting |
0~100000LUX |
|
Shock Resistance |
Withstands multiple times 1.5 meters drops to concrete |
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacturer and are capable of manufacturing the products based on customer requirements. All the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: Why is it so competitive?
With years of experience, Syble has a huge domestic and international market. Mass production directly reduces raw material costs. More importantly, mature technology is an important factor in cost savings.
Q3: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.
Q4: How to control the performance stable?
Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q5. What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranty. During the warranty period, if there is any quality issue with the product, we will provide free repair advice and, if necessary, offer free replacement parts or a new barcode scanner.
