Efficient Scanning 1D CCD Barcode Scanner with 2500 Point pixel

 XB-917 is a high-performance 1D  Wired Barcode Scanner based on advanced CCD technology, designed for retail, logistics, warehousing, medical and industrial fields. With its fast recognition capability, superior durability and wide compatibility, this product can significantly improve the efficiency of barcode data collection, and is an ideal tool for business automation and digital management.

Product Feature

• New decoding chip for interpreting various 1D codes
• Scan one -dimensional wrinkle, scratch bar code
• Support various barcodes such as WeChat and Alipay
• Withstand multiple 3 meters drops to concrete
• Plug and play barcode scanner, easy to set up and quickly match



•






  Specification
  Performance Parameters
  Performance Parameters	617nm,RED LED
  Supported Symbologies	UPC- A, UPC-E, EAN-13, EAN-8, Codabar, Code 39, Code 39 Full ASCII, China Post, Plessey，MSI, Code 93, Code 128, Industrial 2 of 5, Code 11, Interleave 2 of 5, Matrix 2 of 5, ISBN, ISSN, Code 32 (Italian pharm code),  Code 39 extended, GS1-128 and ITF-14, SISAS,GS1Omnidirectional, GS1 Limited, Aviation25, RSS 14.
  Scan Type	2500 Point pixel ccd Image Sensor
  Scan Speed	≥270times/s
  Scan Method	Manual/Continuous /Automatic Scanning
  Scan Angle	Yaw 55°, Rotation 30°, Pitch 65°
  Prevision	4mil(0.1mm), optional 3mil
  Depth of scan field	20-330mm (0.33mm, PCS90%)
  Error Rate	Less than 1/5million
  Interface	USB-HID, USB-COM, RS232 PS2
  Physical Parameters

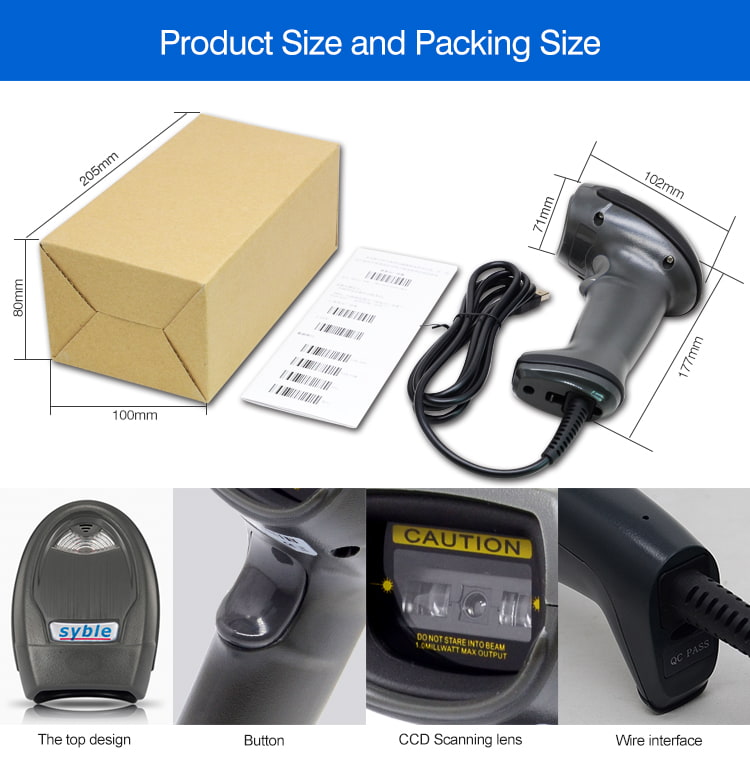

  Dimensions	102mm*71mm*177mm
  Weight	171.3g
  Material	ABS+PC
  Cable	2M Straight
  Environmental Parameters
  Operating Temperature	-20°~ 50℃
  Storage Temperature	-40°~ 70℃
  Relative Humidity	5% - 95% RH(Non-condensing)
  Drop/Shock Resistance	Withstands multiple times 3 meters drops to concrete
  Electrical Parameters
  Voltage	DC5V±1%
  Operating Current	150mA




FAQ

Q1: Is OEM or ODM available?

Yes. Syble is the professional manufacturer and are capable of manufacturing the products based on customer requirements. All the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.

Q2: Why so competitive?

With many years experience, Syble owned a large domestic market and is the best-seller in China. Large quantity reduce the raw material cost directly.What’s more, mature technology is the important factor to save cost.

Q3: How about the quality?

Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.

Q4: How to control the performance stable?

Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.

Q5. What’s the warranty policy for the barcode scanners?

Syble provide 1 month replacement and 24 months maintenance warranties. Barcode scanners can be replaced during the first month if the technical and quality problem. During warranty, free and quick advice for repairing, free spare parts for replacement if necessary  or new barcode scanners replacement in the next order.
