Item NO.:
XB-8206GPayment:
EXW/FOBProduct Origin:
GuangzhouColor:
BlackProduct weight:
248.2gShipping Port:
Guangzhou/ShenzhenLead Time:
5-7daysProduct Feature

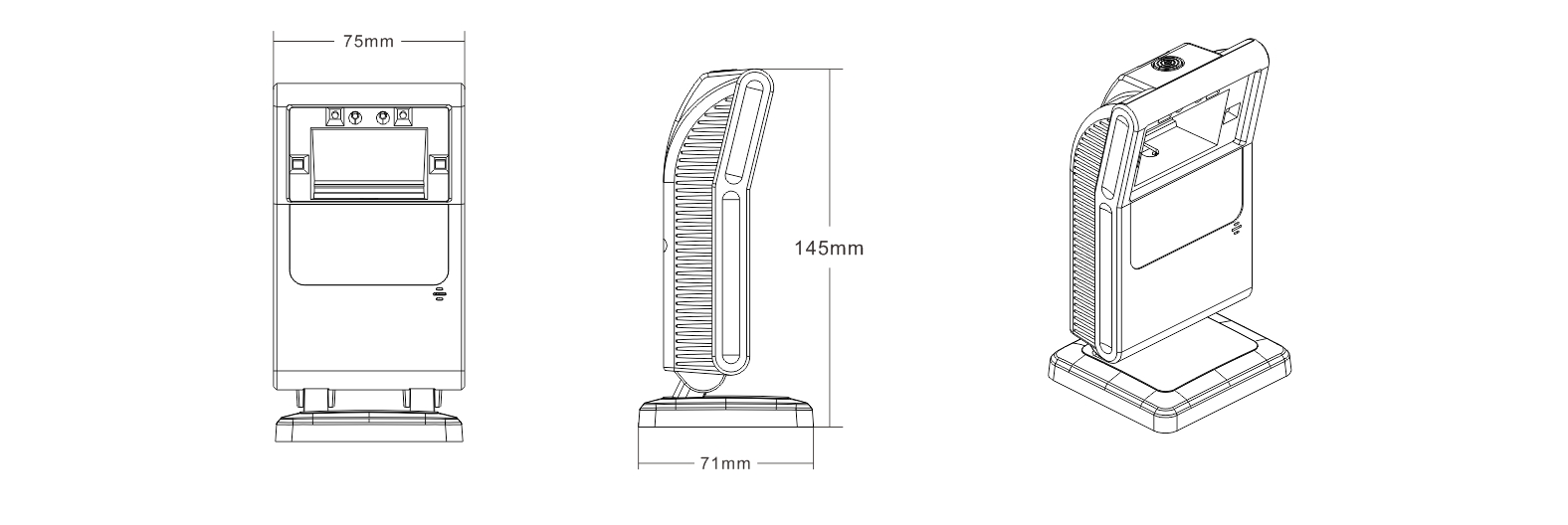

Poduct Size
Specification
Performance Parameters |
|
Light Sources |
630nm red LED |
Supported symbologies |
1D: Code 128, UCC/EAN-128, AIM-128, EAN-128, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, TIF-6, ITF-4, Codabar, Matrix 2 of 5, Industrial 25, Standard 25, MSI-Plessey, Code 39, Code 93,Code 11, Plessey, GS1-DataBarTM(RSS)(RSS-14, RSS-Limited, RSS-Expand). 2D: PDF417, QR Code(QR1/2, Micro), Data Matrix(ECC200, 050, ECC000, 080, 100, 140), Hanxin Code. |
Scan Mode |
AutomaticScanning |
Precision |
4mil |
Scan Depth |
0-160mm(EAN 13 13mil, PCS=90%) |
Motion Tolerance |
3meters/s |
Field of View |
Horizontal: 46.1°; Vertical: 30.4° |
Optical System |
640H*480V pixels(Wide VGA) |
Visual Indicator |
Speaker, LED |
Interface |
USB-HID, USB-COM, RS232 |
Physical Parameters |
|
Dimensions |
75mm*71mm*145mm |
Weight |
248.2g |
Material |
ABS+PC |
CableLength |
2m |
Environmental Parameters |
|
Operating Temperature |
0℃~ 50℃ |
Storage Temperature |
-40℃ ~70℃ |
Humidity |
0% to 95% RH(Non-condensing/non-freezing) |
Shock Resistance |
Withstands multiple times1.5 meters drops to concrete |
Electrical Parameters |
|
Voltage |
DC5V ±1% |
Current |
Working current150mA |
Packaging
FAQ
Q1: Is OEM or ODM available?
Yes. Syble is the professional manufacture, all the hardware and software are 100% designed by us, we are very flexible to offer the ODM/OEM service.
Q2: How about the quality?
Professional QC team and testing machine .All the products pass CE,FCC,ROSH, etc.
Q3: How to control the performance stable?
Syble takes the flow line production in the whole processing. Every product should have to be tested 4 times at least before it delivery.
Q4. What’s the warranty policy for the barcode scanners?
Syble provide 24 months maintenance warranties. Barcode scanners can be replaced during the first month if the technical and quality problem.
During warranty, free and quick advice for repairing, free spare parts for replacement if necessary or new barcode scanners replacement in the next order.
Q5. What Value-added services can be provided
1.Provide all technical documents as required
2.Provide the necessary professional training online or offline
