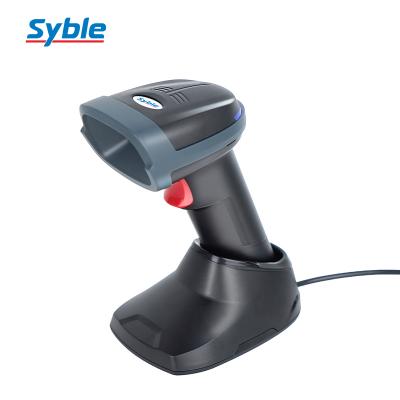

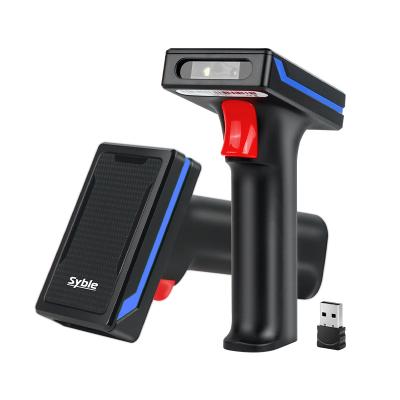

2D Wireless Handheld Bluetooth 2.4GHZ Barcode Scanner XB-6278RB

Performance Parameters

Light Sources

 617nm LED Aimer, White LED

Supported Symbologies

ID: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar,Interleave 2 of 5, ITF-6, ITF-4, ISBN, ISSN, MSI-Plessey, GS1 Data bar,GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5.

2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, Micor QR, Micor PDF417, Hanxin Code.

Resolution：

640*480

Scan Mode:

Manually/Continuous/Automatic Scanning

Precision:

>5mil

Scan Angle:

Yaw±55°, Rotation 360°,Pitch±55°

Contrast:

>20%

Depth of scan field:

EAN13 50-200mm(13mil); QR 25-240mm(20mil); PDF417 30-130mm(6.67mil)

Error Rate:

1/5million

Interface:

USB-HID

Wireless Communication:

Pairing dedicated receiver: 2.4G communication

Pairing Mobile Bluetooth Devices: Bluetooth BLE 4.0

Wireless transmission distance

30-50 meters (open distance)

Storage Mode:

Offline Storage Mode: When the scanner exits the connection range,the data is automatically stored.

Storage capacity is 512000 characters.

Inventory storage mode: Scanner can enter inventory mode, storage capacity is 512000 characters.

Pairing Mode:

One to One: One Scanning Gun Pairs One Receiver;

One scanner paired with a Bluetooth mobile device

Physical  Parameters

Dimensions

102mm*71mm*177mm

Material

ABS+PC

Weight:

223.9g

Cable Length

2M

Environmental Parameters

Operating Temperature:

-20℃ ~50℃

Storage Temperature:

-40℃~70℃

Ambient lighting:

0~100000LUX

Relative Humidity

5%~95% RH（Non-condensing）

Drop/Shock Resistance:

Withstands multiple times 3 meters drops to concrete

Electronic Parameters

Working Voltage

DC5V±5%

Charging Time:

5h

Lithium Battery：

2200mA

Battery Working：

7h

Operating Current:

when not scanning code >26mA;

when scanning code >280mA

Standby Current:

0mA(Standby is to cut off battery power)

Charging Model：

 Square USB charging cable, plug straight charge
