Item NO.:
XB-HC20Payment:
EXW/FOBProduct Origin:
GuangzhouColor:
WhiteProduct weight:
172gShipping Port:
GuangzhouLead Time:

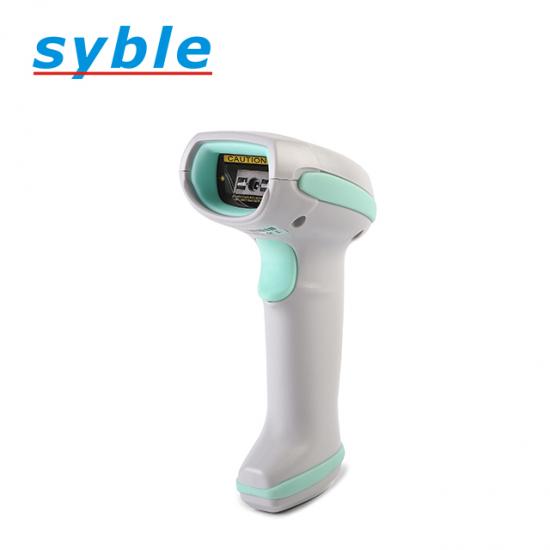

7-10daysHealthcare Scanners Best QR Code Reader 1d Barcode Scanner By Scan
Product features
--Combining with a comfort grip and ergonomic design
--Superior data capture performance
--Featuring an IP42 environmental sealing against moisture and dust
-- impressive 1.5M drop specification to concrete
Model number:XB-HC20
This healthcare scanner supports maximum compatibility by reading major 1D barcode types including UPC, EAN and GS1 DataBar, as well as damaged or poorly printed bar codes
Specification
| Performance Parameters | |
| Light Source | 617nm visible Red LED |
| Scan type | Image linear CCD |
| Scan speed | over 270times/second |
| Scan method | Manually/Automatic inductive/Successive Scanning (Optional) |
| Scan Angle | Yaw 65°,Pitch 55°,Rotation 30° |
| Precision | 4mil |
| Depth of scan field | 20-330mm |
| Bite Error | 1/5million |
| Interfaces | USB-HID,USB-COM, RS-232, PS2 |
| Supported Symbologies |
EAN-8, EAN-13, UPC-A, UPC-E, CODE39, CODE93, CODE128, EAN128, Codebar, MSI, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, China Post Code, all 1D codes/LCD screen codes. |
| Physical Parameters | |
| House Materail | ABS+PC |
| Dimensions | 102mm*71mm*177mm |
| Weight | 171.3g |
| Cable Length | 2m |
| Environmental Parameters | |
| Operating Temperature | -20℃-50℃ |
| Storage Temperature | -40℃-70℃ |
| Relative Humidity | 0~95%(Non-condensing) |
| Drop Resistance | withstand multiple 3m drops onto concrete |
| Electronic Parameters | |
| Voltage | DC 5V±1% |
| Working Current | 150mA |
Product Display
Service:
--On-time Delivery
--Secure Packing
--Guaranteed Quality
--After Parity
Leave A MessageSyble HC70 accurately and easily captures virtually every barcode type found throughout the hospital, and includes innovative features that further boost workflow efficiency and the patient experience.
XB-HC80 for HC Series healthcare scanner delivers a simple way to Identify a patient with the barcoded wristband and prescription orders that reduce medical errors and enhance the efficiency of the hospital environment.
The XB-HC70RB is 2D wireless scanner which is able to communicate to the devices such as laptops, tablet and mobile phone devices
2D Wired Handheld Barcode Scanner interpret various 1D 2D PDF417 DM QR code, and has the OCR function for reading the information in the Passport and ID card etc.
EXW Factory Price for 2D Desktop Hands-free Barcode Scanner, Omnidirectional Barcode
The 2D fixed mount scanner quick and accurate reading of universal 1D and 2D Code, PDF417 DM QR code. It can be widely used in all kinds of self-service terminal equipment or supermarket. Compatible with Linux,Android,Windows XP,7,8,10,MAC.
The Syble XB-X80RB is a compact, uniquely designed 2D wireless desktop reader with a global shutter resolution of 300,000 pixels. It supports 2.4G and Bluetooth connections, making it more convenient for mobile use. It is suitable for small to medium-sized supermarkets, snack shops, specialty stores, and more.
This embedded scan module adopts CMOS global exposure image sensor which support the reading in the process of movement. The appearance is clean and dedicate which can be embedded or external. And this 2d barcode scanner embeddeds upport 1D and 2D barcode, direct transmission of multi language barcode information.
